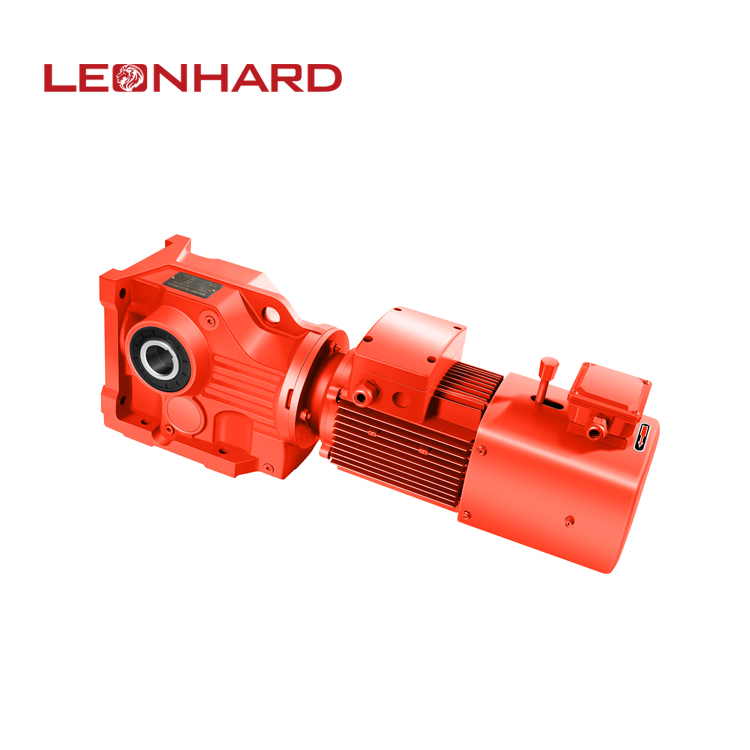

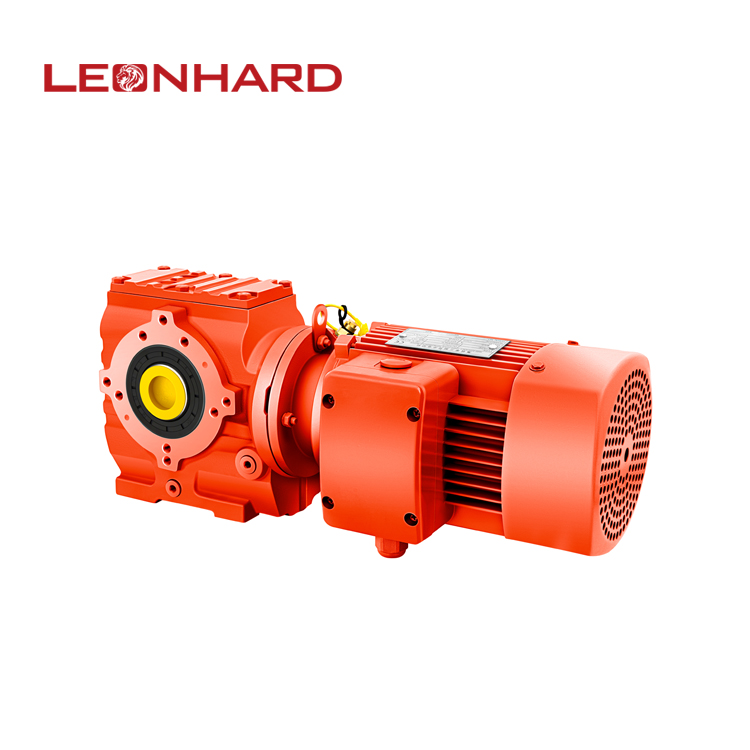

Step-by-step maintenance protocols for helical/bevel gear motors. Lubrication engineering, vibration analysis, and SEW-specific diagnostics.
- The Predictive Maintenance Framework
Maintenance Cost Comparison:
|
Strategy
|
Downtime Hours/Year
|
Repair Cost
|
MTBF
|
|
Reactive
|
190
|
$42,000
|
23,000h
|
|
Preventive
|
85
|
$28,500
|
37,000h
|
|
Predictive
|
26
|
$16,200
|
58,000h
|
- Lubrication Engineering Protocol
- Oil Viscosity Selection:
- Standard: ISO VG 220 ↔ -10°C to 80°C
- Arctic: ISO VG 68 ↔ -40°C to 65°C
- Tropical: ISO VG 320 ↔ 15°C to 110°C
- Relubrication Formula:
Interval (hrs) = [(14,000,000 / RPM) × (150mm / Bearing Bore)^0.5] - 500
- Vibration Diagnostics
Acceptance Thresholds (ISO 10816-3):
|
Severity
|
Velocity (mm/s)
|
Acceleration (g)
|
Action Required
|
|
Normal
|
<2.8
|
<0.15
|
Monitor
|
|
Warning
|
2.8-4.5
|
0.15-0.25
|
Schedule repair
|
|
Critical
|
>4.5
|
>0.25
|
Immediate shutdown
|
- SEW-Specific Maintenance Checklist
- Thermal Inspection:
- FLIR imaging quarterly (Max temp variance: 12°C across housing)
- Oil Analysis:
- Particle count > ISO 17/14/11 = Oil change required
- Bolt Torque Verification:
- M12 flange bolts: 90 Nm ±5%
- M20 foot mounts: 340 Nm ±3%
- Failure Mode Analysis
|
Symptom
|
Root Cause
|
Corrective Action
|
|
Oil leakage
|
Shaft seal hardening
|
Replace with HNBR seals
|
|
Gear pitting
|
Overloading (>150%)
|
Install torque limiter
|
|
Bearing failure
|
Misalignment >0.1mm
|
Laser realignment + soft foot correction
|
